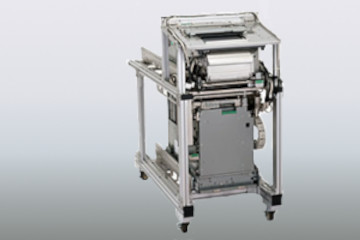

Cash Recycling Module(model:UR-D/S)


Features

  • Cash storages are to be inside the safe separately
  • Recycle up to 8 denominations by combination of optional cassettes
  • Both TTW type with waterproof and Lobby type are available
  • Short in height to fit to worldwide disabilities standard for ATM
  • Applicable up to 40mm safe thickness (UL ~ CEN-4 safe)

Specifications


Installation Frontload / Rearload types for Lobby use
Rearload-TTW type w/ Weatherproof for through-the-wall use
Dimensions Lobby type: (W) 402 x (D) 913 x (H)827 mm
TTW Type: (W) 402 x (D) 1,201 x (H)827mm
Capacity Cash In/Out Slot: 200notes.
Escrow: 400notes.
Cassettes (Single room): 295mm
(Max. 2,700notes.*1)
Cassettes (Dual rooms): 55mm + 135mm
(Max. 500notes. + 1,300notes. *1)
Retract Box: 200notes.
StorageUp to 5 lanes for Single or Dual room cassettes
(Max. 8 recycling + 2 deposit only rooms)
Retract Box
Communication
Interface
USB 2.0
PowerDC 24V
OptionsWeatherproof external shutter w/ heater

*1: In the case of Japanese mint conditioned notes. Number of notes may vary depending on the thickness and condition of notes.
