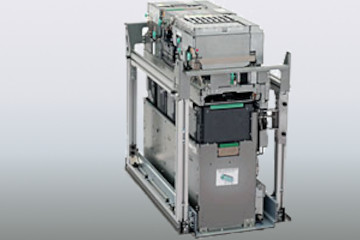

Cash Recycling Module(model:UR-2)


Features

  • Compact layout to be installed all units inside the safe
  • Large capacity to recycle up to 8 denominations by combination of optional cassettes
  • Automated banknote counting function *1
  • Short in height to fit to worldwide disabilities standard for ATM
  • Applicable up to 25mm safe thickness (UL & CEN-L Safe)
  • *1: When note sizes are common among handling denominations.


Specifications



Installation Frontload / Rearload types for lobby use
Dimensions (W) 310 x (D) 760 x (H)775 mm
Capacity Cash In/Out Slot: 300notes.
Escrow: 300notes.
Cassettes (Single room): 362mm
(Max. 3,400notes.*1)
Cassettes (Dual rooms): 55mm + 200mm
(Max. 450notes. + 1,800notes. *1)
Retract Box: 300notes.
StorageUp to 5 lanes for Single or Dual room cassettes
(Max. 8 recycling + 2 deposit only rooms)
Retract Box
Communication
Interface
USB 2.0
PowerDC 24V
OptionsCassette withdrawal Lock Kit for CIT operations

*1: In the case of Japanese mint conditioned notes. Number of notes may vary depending on the thickness and condition of notes.
