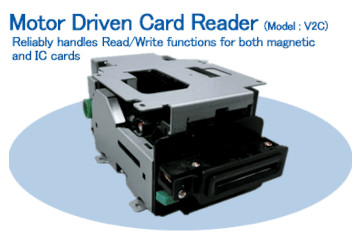

Motor Driven Card Reader (Model: V2C)

Motor Driven Card Reader (Model: V2C)


Features

  • Improved features of security, safety, and operability
  • Advanced mechanical structure
  • Options and expandability: Anti-skimming device, Anti-fishing shutter, HICO card encoding.

Major Applications

  • ATM/CD
  • Ticket vending machine
  • Vending Machine
  • Various Kiosk

Specifications

Type Name V2CU-1JL-051 V2CF-1JL-001
Magnetic Stripe ISO1 R/W R/W
ISO2 R/W R/W
ISO3 R/W R/W
JISII - -
IC Card R/W R/W
Memory Card
(SLE4418/28/32/42)		 R/W R/W
Shutter Blade Blade
Interface USB RS232C
Power 24VDC+10%/-15% 24VDC+10%/-15%
IC card
Certification		 EMV Approved Approved
PBOC Approved Approved
Dimensions(mm) WxDxH 124x210 (210 *1)x90 124x210 (214 *1)x90

R : Read only      R/W : Read & Write

*1 Including interface connector
