Hitachi

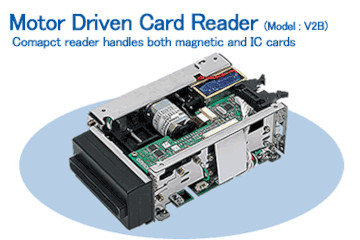

Motor Driven Card Reader (Model: V2B)

Motor Driven Card Reader (Model: V2B)


Features

  • Read magnetic cards, and Read/Write both smart and memory cards
  • Able to update software program from host side by firmware download function.
  • RS232 interface with user friendly command protocol for easy integration
  • Rear ejection function and mechanical shutter prevents foreign objects and dust
  • EMV Level1 approved

Major Applications

  • Ticket vending machine
  • Information & Payment KIOSK
  • ID Card Checker
  • Various Kiosk

Specifications

Type Name V2BF-01JS V2BF-0FJS
Magnetic Stripe ISO1 R R
ISO2 R R
ISO3 R
JISII R
IC Card R/W R/W
Memory Card(SLE4418/28/32/42) R/W R/W
Shutter Mechanical Mechanical
Interface RS232C RS232C
Power 12VDC+/-10% 12VDC+/-10%
Dimensions(mm) WxDxH 89x143x48 89x143x48

R : Read only      R/W : Read & Write
