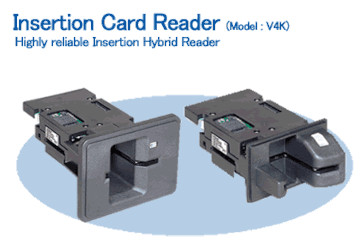

V4K/V4KF/V4KU Series


Features

  • Long life and highly reliable magnetic head with ceramic block implemented.
  • Mechanical shutter prevents dust and any foreign objects
  • Lock function prevents card to be pulled out during transaction.
  • EMV Level 1 approved.

Major Applications

  • ATM/Cash Dispenser
  • Information & Payment KIOSK
  • Vending Machine
  • Various Kiosk

Specifications

Type Name V4KF-01JS-001 V4KF-01JF-001 V4KU-01JS-001 V4KU-01JF-001
Magnetic Stripe ISO1 R R R R
ISO2 R R R R
ISO3 R R R R
JISII
IC Card R/W R/W R/W R/W
SAM 1 1 1 1
Interface RS232 RS232 USB(*1) USB(*1)
Power 12VDC
+/-10%
12VDC
+/-10%
24VDC
+/-10%(*2)
24VDC
+/-10%(*2)
Dimensions(mm) WxDxH 80X
147X
50
101.6X
147X
76.2
80X
133X
50
101.6X
133X
76.2
Front Insertion Guide Round Bezel Flat Bezel Round Bezel Flat Bezel

R : Read only      R/W : Read & Write
   *1 Scheduled USB interface change from type B to type miniB during 2012-2013.
   *2 Scheduled Power supply connector change during 2012-2013.
    (Please inquire regarding detailed schedule before purchasing)
