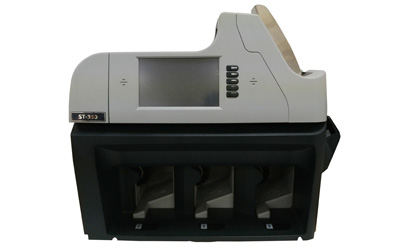

ST-350 Series


Features

ST-350 is a smart, practical multi-currency fitness sorter and banknote counter designed for users’ convenience. ST-350 is optimized for high performance, enhanced authentication and easy operation.


High-speed image processing

  1. High resolution dual CIS
  2. High level fitness sorting
  3. Capture and Record of OCR
  4. Can be installed up to 10 currencies

Advanced counterfeit detection

  1. Equipped with range of counterfeit detection technologies.

Remote monitoring system by 'SIM'

  1. Connect with SIM link

User-friendly system

  1. Multi user mode available
  2. Highly visible 7” Full color touch screen
  3. Simple and easy operation
  4. Easy maintanance

ST-350 is an ideal choice for :

  1. Bank(Cash Center), CIT (Cash in Transit)

Specifications

[Product Features]
- Fitness operation
  (holes, tears, dog-ears, tape, soil, stains, folded, de-inked, graffiti etc.)
- Multiple pocket setting
  (ATM, Fitness, dirt, reject / note direction(FF,FR,BF,BR) / note denomination)
- Wide display
- Dust tray
- SIM program apply
Currency Up to 10 Currencies
Operating Speed Value Counting 900 notes/min
Fitness Sorting 700 notes/min
Serial Number Reading 700 notes/min
Pocket Capacity Hopper 600 notes
Reject Pocket 100 notes
Stacker x 3 200 notes
Display 7” Full Color Graphic LCD
Dimension 534(W) x 454(D) x 481(H) mm
Weight 47 kg
Power Supply 100 ~ 240 V AC, 50/60 Hz
Countable Note Size Length 60 - 100 mm
Width 100 - 180 mm
Counterfeit Detection Full Line MG, CIS, IR, UV
Communication LAN, USB(USB port x 2), RS232C, Video out(15 pin S-SUB)
Accessories External display, Thermal printer, OSD(ON Screen Display)
